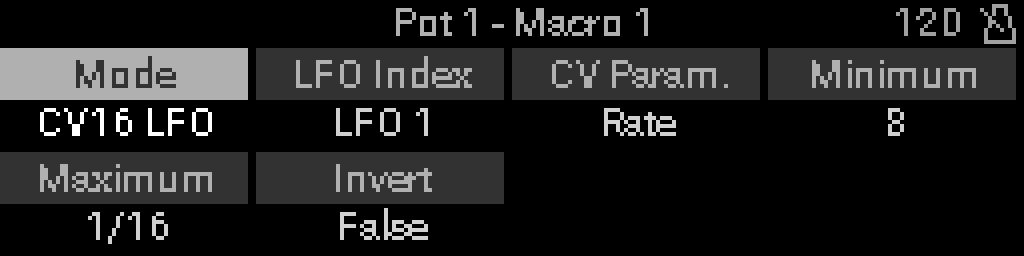

Appearance
CV16 LFO Parameter
Firmware menu name: CV16 LFO
Modulate a CV16 expander LFO parameter.
When to use it
Use CV16 LFO to modulate an on-module CV16 LFO parameter (rate, depth, phase, etc.) from a knob when a CV16 expander is connected.
Parameters
| Parameter | Range | What it does |
|---|---|---|
| Mode | — | Macro output type. Change this to switch between MIDI, internal routing, and CV16 targets. |
| LFO Index | LFO 1 – 16 | Which CV16 or S32 LFO is modulated (depends on macro mode). |
| CV Param. | LFO parameter | Which LFO field the knob adjusts. Available options depend on S32 LFO vs CV16 LFO mode. |
| Minimum | Mode-specific | Value sent when the knob is at minimum travel. Units follow the target (MIDI 0–127, 14-bit 0–16383, device parameter native range, CV volts, LFO %, etc.). |
| Maximum | Mode-specific | Value sent when the knob is at maximum travel. Must be greater than or equal to Minimum. |
| Invert | True / False | When True, knob clockwise motion maps to decreasing values (minimum ↔ maximum swapped). |
CV16 LFO parameters you can target
When Parameter (CV Param.) is set, these are the LFO fields available in CV16 LFO macro mode:
| Parameter | What it does |
|---|---|
| Enabled | Turn the CV16 LFO on or off. |
| Wavetable | LFO waveform shape. |
| Frequency | LFO rate in Hz or clock-synced divisions. |
| Frequency from BPM | Rate derived from project BPM. |
| Phase | Start position in the cycle. |
| Amplitude | LFO output depth. |
| Offset | DC offset on the LFO output. |
| Minimum | Lower clamp for the modulated CV16 LFO parameter. |
| Maximum | Upper clamp for the modulated CV16 LFO parameter. |
