SysEx

Firmware menu name: SysEx

Send System Exclusive with knob-modulated payload bytes.

When to use it

Use SysEx when the target responds to a fixed System Exclusive message and you want the knob to modulate bytes inside that message (via the SysEx editor).

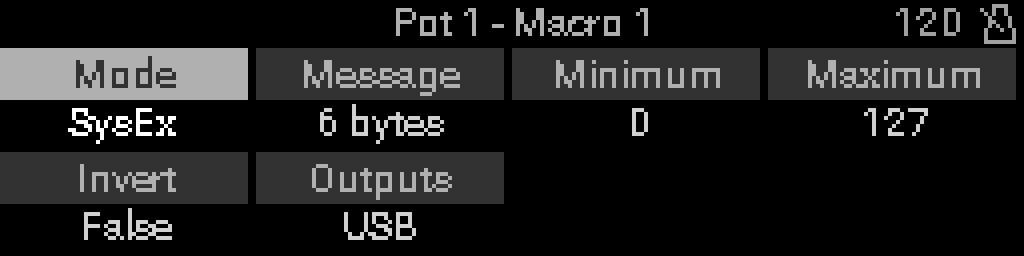

Parameters

Parameter	Range	What it does
Mode	—	Macro output type. Change this to switch between MIDI, internal routing, and CV16 targets.
Message	Up to 256 bytes	Raw SysEx payload. Press Select (short) Press Select on this row to open the SysEx editor and set MSB/LSB byte positions for modulation.
Minimum	Mode-specific	Value sent when the knob is at minimum travel. Units follow the target (MIDI 0–127, 14-bit 0–16383, device parameter native range, CV volts, LFO %, etc.).
Maximum	Mode-specific	Value sent when the knob is at maximum travel. Must be greater than or equal to Minimum.
Invert	True / False	When True, knob clockwise motion maps to decreasing values (minimum ↔ maximum swapped).
Outputs	USB / DIN / combos	Which physical MIDI outputs carry this macro: USB, Out 1, Out 2, or combined masks.

SysEx message editor

INFO

Press Select (short) Press Select on the Message row to open the dedicated SysEx editor. See SysEx editor for byte editing, MSB/LSB slots, and hold-to-edit.

MIDI outputs

The Outputs field selects one of these port combinations:

• None
• USB
• Out 1
• USB + Out 1
• Out 2
• USB + Out 2
• Out 1 + Out 2
• USB + Out 1 + Out 2
