NRPN

Firmware menu name: NRPN

Send Non-Registered Parameter Number messages.

When to use it

Use NRPN for Non-Registered Parameter Number messages — vendor-specific or extended parameters on gear that exposes NRPN control.

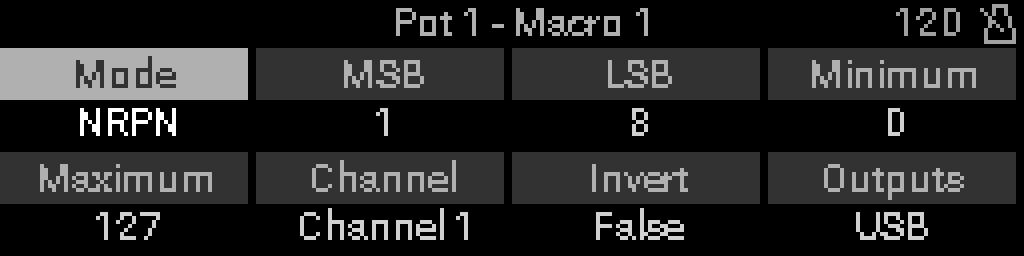

Parameters

Parameter	Range	What it does
Mode	—	Macro output type. Change this to switch between MIDI, internal routing, and CV16 targets.
MSB	0 – 127	Most significant byte. For CC and CC14 this is the control number; for NRPN / RPN it is the parameter number MSB.
LSB	0 – 127	Least significant byte. For CC14 this completes the 14-bit controller number; for NRPN / RPN it is the parameter number LSB.
Minimum	Mode-specific	Value sent when the knob is at minimum travel. Units follow the target (MIDI 0–127, 14-bit 0–16383, device parameter native range, CV volts, LFO %, etc.).
Maximum	Mode-specific	Value sent when the knob is at maximum travel. Must be greater than or equal to Minimum.
Channel	Global, 1 – 16	MIDI channel for outgoing messages. Global uses the project's global channel setting.
Invert	True / False	When True, knob clockwise motion maps to decreasing values (minimum ↔ maximum swapped).
Outputs	USB / DIN / combos	Which physical MIDI outputs carry this macro: USB, Out 1, Out 2, or combined masks.

MIDI outputs

The Outputs field selects one of these port combinations:

• None
• USB
• Out 1
• USB + Out 1
• Out 2
• USB + Out 2
• Out 1 + Out 2
• USB + Out 1 + Out 2
