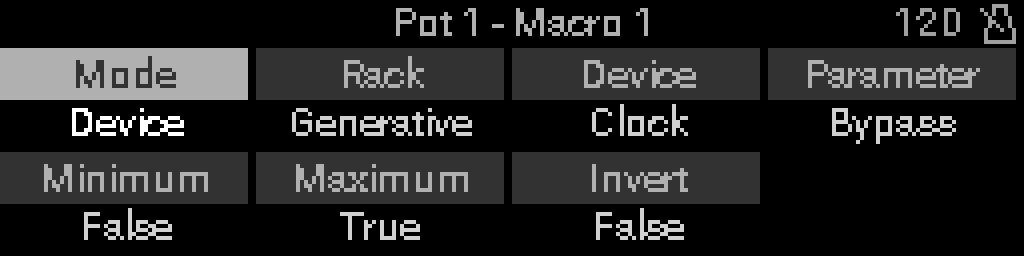

Appearance
MIDI Device Parameter
Firmware menu name: Device
Modulate a rack device parameter inside the S32.
When to use it
Use Device to modulate any parameter on a rack device (filter cutoff, arp rate, scaler key, etc.) without leaving the S32. Pick rack, device, and parameter, then set min/max in native units.
Parameters
| Parameter | Range | What it does |
|---|---|---|
| Mode | — | Macro output type. Change this to switch between MIDI, internal routing, and CV16 targets. |
| Rack | Rack list | Which rack contains the target device. |
| Device | Device list | Which device in the rack receives knob modulation. |
| Parameter | Parameter list | Device parameter to modulate. Min/max are clamped to that parameter’s allowed range. |
| Minimum | Mode-specific | Value sent when the knob is at minimum travel. Units follow the target (MIDI 0–127, 14-bit 0–16383, device parameter native range, CV volts, LFO %, etc.). |
| Maximum | Mode-specific | Value sent when the knob is at maximum travel. Must be greater than or equal to Minimum. |
| Invert | True / False | When True, knob clockwise motion maps to decreasing values (minimum ↔ maximum swapped). |
