Pitch Bend

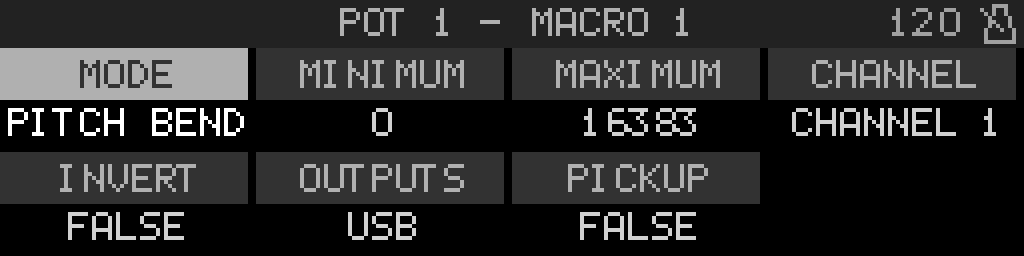

Firmware menu name: PITCH BEND
Send channel-wide 14-bit MIDI Pitch Bend.
When to use it
Use Pitch Bend to drive the MIDI pitch bend wheel from a knob. Bend is channel-wide, so there is no CC number to set — just a channel. The range is the full 14-bit bend span (0-16383, centre 8192), which by default puts the bend centre at the knob's midpoint. Narrow Min/Max to limit how far the knob can bend, or set both to the same value to pin the bend.
Parameters
| Parameter | Range | What it does |
|---|---|---|
| Mode | — | Macro output type. Change this to switch between MIDI, internal routing, and CV16 targets. |
| Minimum | Mode-specific | Value sent when the knob is at minimum travel. Units follow the target (MIDI 0–127, 14-bit 0–16383, device parameter native range, CV volts, LFO %, etc.). |
| Maximum | Mode-specific | Value sent when the knob is at maximum travel. Must be greater than or equal to Minimum. |
| Channel | Global, 1 – 16 | MIDI channel for outgoing messages. Global uses the project's global channel setting. |
| Invert | True / False | When True, knob clockwise motion maps to decreasing values (minimum ↔ maximum swapped). |
| Outputs | USB / DIN / combos | Which physical MIDI outputs carry this macro: USB, Out 1, Out 2, or combined masks. |
MIDI outputs
The Outputs field selects one of these port combinations:
- None
- USB
- Out 1
- USB + Out 1
- Out 2
- USB + Out 2
- Out 1 + Out 2
- USB + Out 1 + Out 2
